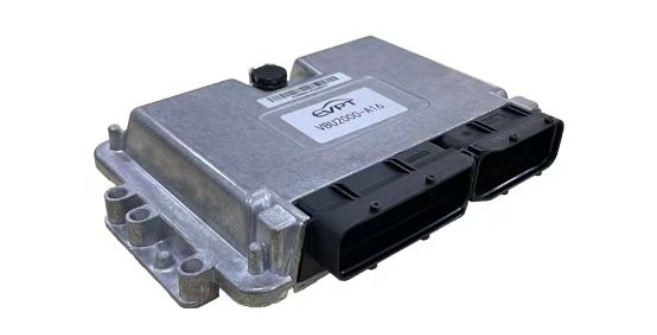

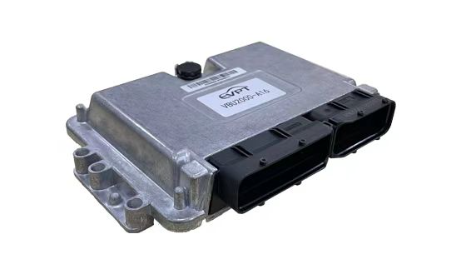

Vehicle and Battery Unit
VBU2000
Application Scenarios
Suitable for new energy and intelligent connected vehicles on 12V/24V platforms.
Product Features
01
Integrated VCU and BMS controller, supporting slow charging and fast charging interfaces
02
Compatible with both 12V and 24V universal platforms
03
Capable of collaborating with BMS slave boards for SOX calculation, equalization control, etc.
Product Performance
Power Supply Wake-up: 4 channels of cable wake-up and 1 channel of CAN wake-up
Input Signals: 12 channels of analog input, 18 channels of digital input, and 4 channels of PWM input
Output Signals: 4 channels of PWM output, 1 channel of H bridge driver, 8 channels of high side driver, and 18 channels of low side driver
Output Power: 4 channels of 5V power supply
Communication Bus: 5 channels of CAN
Meet Functional Safety ASIL-B and Cyber Security
