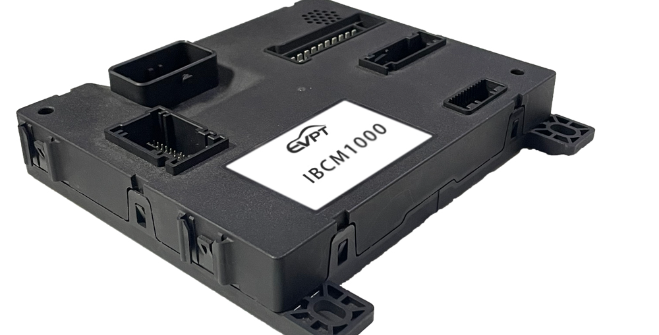

Body Control Module

IBCM1000

Application Scenarios
Vehicle body control for passenger cars and commercial vehicles with 12V power supply system
Product Features
01
Equipped with abundant interface resources
02
Provide one-stop services covering hardware, firmware, application layer, and calibration
Product Performance
Power wake-up: equipped with RF wake-up and IO wake-up functions
Input signal: 19 channels of analog signal acquisition,
47 channels of digital input, 3 channels of PWM input
Output signals: 16 channels of high side driver, 15 channels of low side driver, 8 channels of high/low side driver, 2 channels of bidirectional motor control, 5 channels of unidirectional motor control, 6 channels of LF driver, built-in speaker
Output power Supply: 1 channel of 9V power supply output, 2 channels of 5V power supply output
Communication Bus: 2 channels of CAN communication, 2 channels of LIN communication, PEPS function
Protection level: IP6K7K
