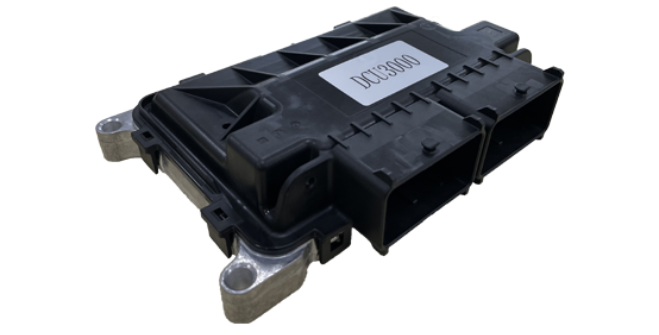

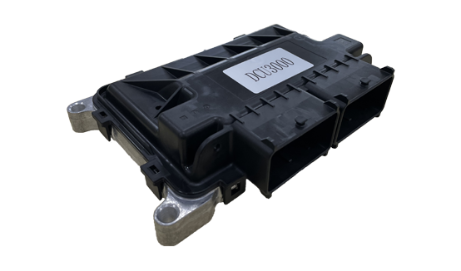

Domain Control Unit

DCU3000

Application Scenarios
Suitable for pure electric and hybrid models on 12V platform
Product Features
01
Featuring the Infineon TC377 microcontroller
02
Rich interface resources with support for thermal management integration
03
Complete solution covering hardware, firmware, application layer, and calibration
Product Performance
Power Wake-up: 3 channels of high active wake-up, 1 channel of low active wake-up, 2 channels of CAN wake-up, and 1 channel of Ethernet wake-up
15 channels of analog input, 16 channels of digital input,
and 4 channels of PWM input,
with built-in atmospheric pressure sensor
4 channels of 5V power supply
Protection level reaches IP67
2 PWM outputs, 1 H-bridge driver, 4 half bridge drivers, 4 high side drivers, 20 low side drivers, and 2 LED drivers
Communication bus: 5 channels of CAN, 4 channels of LIN, 2 channels of SENT, and 1 channel of Ethernet
Meet Functional Safety ASIL-C, Cyber Security
and AUTOSAR 4.2.2
