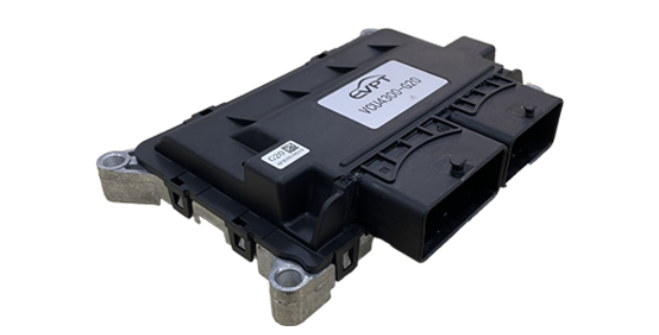

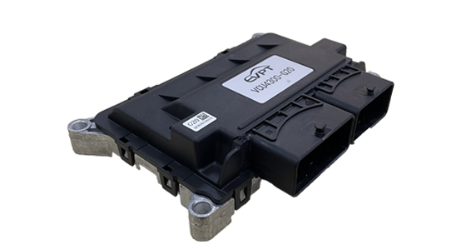

Vehicle Control Unit

VCU4300

Application Scenarios
Domestically-developed controller, engineered for 12V platforms in pure electric and hybrid vehicles with HIGH Functional Safety and Cyber Security requirements.
Product Features
01
Abundant interface resources
02
One-stop service covering hardware, firmware, application layer, and calibration
03
High cost-performance ratio
Product Performance
Power wake-up: 3 channels of high active wake-up, 1 channel of low active wake-up, 3 channels of CAN wake-up, and 1 channel of LIN wake-up
Provide 3 channels of 5V power supply voltage output
3 channels of CAN, including 1 channel of partial networking, 2 channels of selective wake-up, and 2 channels of LIN, including 1 channel of wake-up function
17 channels of analog input, 22 channels of digital input, built-in atmospheric pressure sensor
4 channels of high side, 25 channels of low side
Protection level IP67
Meet Functional Safety ASIL-C and AUTOSAR 4.2.2
The chip is equipped with HSM encryption chip and configurable Cyber Security
