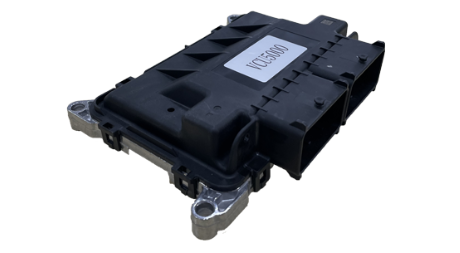

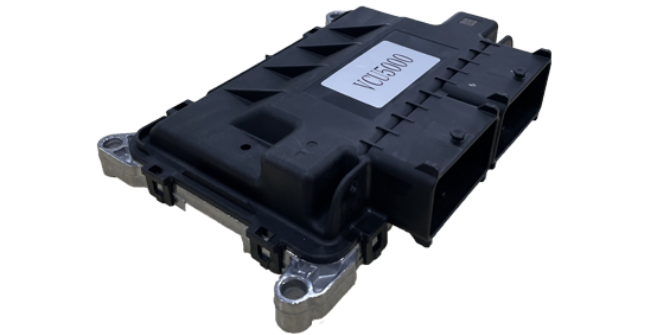

Vehicle Control Unit

VCU5000

Application Scenarios
Fully domestic controller, designed for 12V platforms in pure electric and hybrid vehicles with HIGH functional safety, cybersecurity requirements, and HEAVY resource demands.
Product Features
01
Rich interface resources covering most market requirements
02
One -stop service including hardware, firmware, application layer, and calibration
03
High-performance vehicle controller with onboard Ethernet
Product Performance
Wake up: 3 channels of high active wake-up, 2 channels of low active wake-up, 4 channels of CAN wake-up, and 1 channel of Ethernet wake-up
Provide 3 channels of 5V power supply voltage output
5 channels of CAN , including 1 channel of partial networking and 2 channels of selective wake-up; 3 channels of LIN, including 1 channel of wake-up function, 2 channels of send interface and 1 channel of Ethernet
17 channels of analog input,
22 channels of digital input,
built-in atmospheric pressure sensor
4 channels of high side, 29 channels of low side, 3 channels half-bridge, 2 channels of h-bridge, 4 channels of solenoid valve constant current driver output
Protection level reaches IP67
Meet Functional Safety ASIL-C and AUTOSAR 4.2.2
The chip is equipped with HSM encryption chip and configurable Cyber Security
