1.Overview

1.1 VCU3000 vehicle controller is the upgraded version of VCU2000, which is the core control device of electric vehicle. It is responsible for vehicle driving intention analysis, vehicle management, fault diagnosis and drive control.

1.2 on the one hand, VCU3000 controller plays a role in improving driving comfort, providing driving range and reducing power consumption of electric vehicles. On the other hand, VCU3000, as the controller of the company's main pure electric and extended electric passenger vehicle platform, has a higher safety level, and carries out software and hardware development according to the requirements of ISO26262 development process. At the same time, it inherits the control system platform of VCU2000, which greatly shortens the process of various vehicle matching and marketization.

2.Product features

2.1 it has rich hardware interfaces and perfect functions.

2.2 the underlying software and application software of the controller are in line with the AUTOSAR interface standard. The underlying software of the controller is generated by AUTOSAR / MCAL configuration, and has mature and rich standardized function algorithm library for user configuration.

2.3 the security architecture with high security Dual CPU and multiple redundant designs meets the functional security design of ISO26262.

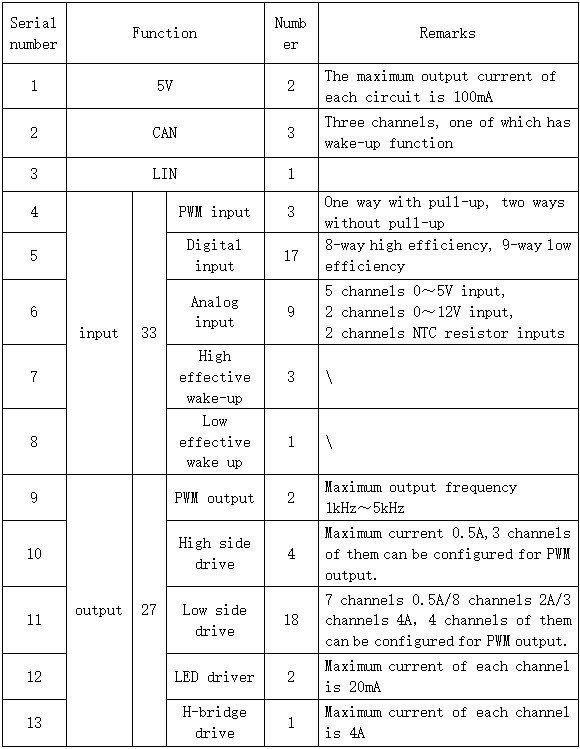

3.Main Parameter

4.Product Structure And Principle

4.1 Standard hardware platform: it has rich high and low side drive output, analog and digital signal detection interfaces. It is matched according to the actual system scheme. The three can can be equipped with 120 ohm terminal resistance to protect the short circuit to battery and short circuit to ground.

4.2 Software modular design: the bottom software and application software of the controller meet the AUTOSAR interface standard, and have rich software resource library, such as OBD / UDS diagnosis library, CCP calibration library, vehicle accessories management library, etc.
