1.Summary

CA48S-100 integrated BMS system can collect up to 48S battery cells and balance control, 12 channel temperature of battery cells, support one channel current collection, support four channel total voltage and one channel insulation collection, support national standard fast charging and slow charging, and support 8-Channel High Side relay control; The parameters of SOC, SOH, sof, actual capacity and internal resistance are calculated; Diagnose the fault of battery system and deal with it.

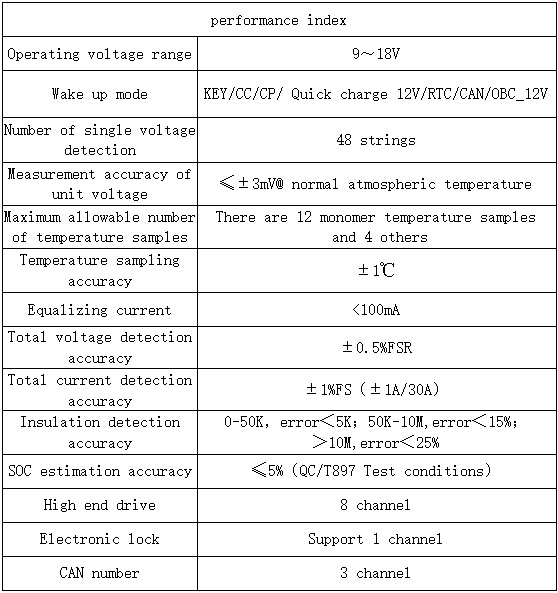

2.Technical Parameter
